Execution directory

Every hank run writes its work into a single execution directory: the agent workspace (agentRoot/), the archive of files moved out by archiveOnSuccess (rigArchive/), and the runtime's own bookkeeping (.hankweave/). Because all three live together, a completed execution is self-contained: you can inspect it, resume it, replay it, or pack it up as a debugging snapshot.

This page is the lookup reference for that directory. It covers where the directory is created and how Hankweave protects explicit paths, what each top-level entry contains, the state and log files under .hankweave/, the archive layout, replay behavior, checkpoint file watching, and the lifecycle rules that apply at cleanup time.

Where the execution directory lives#

By default, Hankweave creates execution directories under the managed root ~/.hankweave-executions/. Set HANKWEAVE_RUNTIME_EXECUTION_BASE_DIR to move that root; hankweave.json's executionBaseDir is informational only and does not move it. getManagedExecutionsRoot() reads this environment variable at call time when the managed root is requested.

When Hankweave auto-creates a directory under the managed root, the name follows this shape:

{timestamp}-{random}-{dataHashFirst6}

Here, timestamp is Date.now(), random is the four-character result of Math.random().toString(36).substring(2,6), and dataHashFirst6 is the first six characters of the 12-character hex SHA-256 digest produced for the data source. For a directory, that digest covers a bounded manifest of entry names, types, sizes, and modification times; the scan reaches depth 3, considers at most 100 entries per directory, and can be truncated. For a single file, its metadata and contents are hashed. The hash in the name is what makes resume work: Hankweave chooses the most recent existing directory with the same dataHash, and creates a new one only when there is no match.

To choose the location yourself, pass --execution (or -e). Hankweave creates an absent path. What happens next depends on what is already there and on --start-new. Tier 1 of the safety checks below applies to every explicit path; the Tier 2 and Tier 3 checks run only when --start-new is also supplied. Without --start-new, an existing directory without .hankweave/ is adopted after printing Using existing directory as execution directory: <path>, with no prompt or counts; an existing execution with .hankweave/execution-meta.json is resumed after its data-hash check, and a changed hank.json prompts Continue with modified config? unless -y or --force is used.

The managed root and an explicitly selected execution are separate concepts: set the environment variable for the former, and use --execution for the latter. Either way, a hank run uses the selected execution directory for its workspace and state.

HANKWEAVE_RUNTIME_EXECUTION_BASE_DIR=/var/lib/hankweave-executions \
  bunx hankweave@0.10.0 ./hank.json ./data

Tiered safety for execution directories#

Because an explicit path can point anywhere, Hankweave applies three protections to it. Tier 1 is unconditional; Tier 2 and Tier 3 are part of the --start-new branch:

1. Managed-root protection. A new --execution path inside ~/.hankweave-executions/ is rejected. An existing execution there may be resumed; manually creating a new one there through --execution is not allowed.
2. Existing execution metadata. With --start-new, a path that already contains .hankweave/ refuses a fresh start unless --force is also supplied. That operation renames .hankweave/ to .hankweave.backup-{timestamp} and wipes agentRoot/, unless --no-wipe preserves it.
3. Non-empty path without metadata. With --start-new, a non-empty directory without .hankweave/ asks for confirmation and reports file and directory counts before agents receive read/write access. --force or -y skips that prompt.

--start-new/-n requests a fresh execution. Without --execution, the fresh directory is auto-created under the managed root; with an explicit path, the protections above still apply. One further guard applies on resume: if the data-source hash differs from the recorded one, the resume is blocked with the expected and current hashes. --force or --ignore-data-mismatch overrides that mismatch.

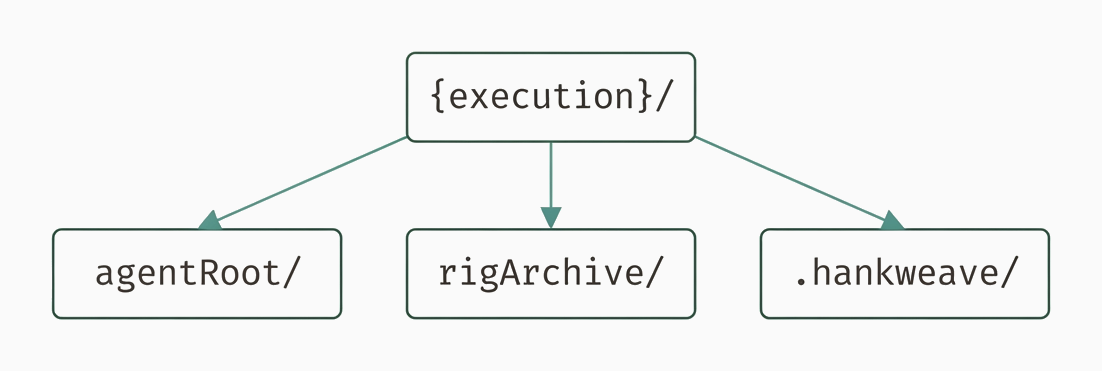

The directories you see at the top level#

Setup creates three principal entries:

↗ Enlarge

{execution}/
├── agentRoot/
├── rigArchive/
└── .hankweave/

agentRoot/ is the workspace passed to agent processes. Agent file operations occur there, and files matching checkpointedFiles patterns are candidates for checkpoint (a Git snapshot) tracking. rigArchive/ starts empty and stores files moved by archiveOnSuccess; its layout is described below. .hankweave/ holds everything the runtime writes about the run, detailed in the next two sections. A completed root can also contain the checkpoint .gitignore and model-validation.log, which records model-catalog validation logging during startup.

To make that concrete, here is the observable layout of a completed one-codon run (one agent task):

.
├── .gitignore
├── .hankweave
│   ├── archive-manifest.json
│   ├── checkpoints
│   │   ├── .gitconfig
│   │   └── .hankweavecheckpoints
│   │       ├── COMMIT_EDITMSG
│   │       ├── config
│   │       ├── description
│   │       ├── HEAD
│   │       ├── hooks
│   │       ├── index
│   │       ├── info
│   │       ├── logs
│   │       ├── objects
│   │       ├── ORIG_HEAD
│   │       └── refs
│   ├── events
│   │   └── events.jsonl
│   ├── execution-meta.json
│   ├── logs
│   │   └── server.log
│   ├── runs
│   │   └── <id>
│   │       └── write-line-claude.log
│   ├── sentinels
│   │   └── history
│   ├── state.json
│   └── state.json.bak
├── agentRoot
│   ├── out.txt
│   └── read_only_data_source -> <workspace>/fixtures/scenarios/execution-directory/data
├── model-validation.log
└── rigArchive

Note read_only_data_source/ inside agentRoot/. By default it is a symlink to the original data source; --copy requests a copy instead. If the symlink system call fails, Hankweave falls back to a directory copy. For a single-file source, the file is placed at read_only_data_source/{basename}. This path is always excluded from checkpoint resolution.

The shipped hankweave init fixture also supplies these repository ignore rules:

.hankweave/
*.log
node_modules/

Its README documents adding rigSetup to prepare an environment before a codon runs:

…
- Add `rigSetup` to prepare your environment before a codon runs
…

The files Hankweave writes to track execution#

The entries under .hankweave/ fall into two groups: small files that identify the execution and its owning process, and larger stores that persist history. This section covers the identity files and the two metadata files that sit beside them.

.hankweave/runtime.lock#

runtime.lock contains the process and run identity used for crash detection and attach-port discovery. Its fields are pid, runId, startTime, lastHeartbeat, and port; the heartbeat is refreshed every 30 seconds.

    interface LockFile {
      pid: number;
      runId: string;
      startTime: string;
      lastHeartbeat: string;
      port?: number; // Optional for backward compatibility with old lock files

.hankweave/execution-meta.json#

execution-meta.json records the execution identity and environment. Its format version is "1.1.0"; it includes hankweaveVersion, an environment object with invocationMethod, platform, arch, osRelease, and runtime, and the identity/time fields dataHash, hankHash, hankPath, linkType, createdAt, and lastUsed. It also records readOnlySourceDataPath as supplied and readOnlySourceResolvedDataPath as the real path returned by fs.promises.realpath.

The following is the TypeScript construction that writes the metadata, not a captured JSON record:

  const meta = {
    version: "1.1.0",
    readOnlySourceDataPath,
    readOnlySourceResolvedDataPath: await fs.promises.realpath(readOnlySourceDataPath),
    dataHash,
    hankHash,
    hankPath,
    linkType,
    createdAt: isNewExecution
      ? new Date().toISOString()
      : (existingMeta?.createdAt ?? new Date().toISOString()),
    lastUsed: new Date().toISOString(),
    hankweaveVersion: getMetadata().version,
    environment: {
      invocationMethod,
      platform: process.platform,
      arch: process.arch,
      osRelease: os.release(),
      runtime: getRuntimeVersion(),
    },
  };

State and archive metadata#

.hankweave/state.json is the primary persistence file for the complete execution history: runs, codons, checkpoints, and costs. state.json.bak is written before each save; if the primary file is corrupted, Hankweave falls back to the backup. The complete schema is in State file reference.

.hankweave/archive-manifest.json tracks files archived by archiveOnSuccess. It is outside the checkpointed Git work tree, has version "1.0.0", and starts as {"version":"1.0.0","entries":[]}. Rollback uses manifest entries after the target checkpoint SHA and updates the manifest with removeEntriesAfterCheckpoint(); the archive paths and entry fields are described in How rigArchive/ is organized.

The subdirectories and their contents#

Below the metadata files, .hankweave/ grows subdirectories as the run proceeds: an event journal, logs, per-run agent transcripts, the checkpoint Git store, and sentinel state.

Events and logs#

.hankweave/events/events.jsonl is an append-only JSONL journal: each significant server event is one JSON object, and line order supplies the audit trail. See Events for its event schema. WebSocket traffic is recorded separately in the logs directory.

The logs/ directory is created lazily on the first logger write. logs/server.log is timestamped plain text for startup, codon transitions, and debug output. logs/websocket.log is JSONL; each entry has loggedAt, direction (in or out), the full ClientCommand or ServerEvent in message, and metadata.size:

Configured sentinels also store output and conversational history below .hankweave/sentinels/.

Run folders and agent logs#

.hankweave/runs/{runId}/ is created when a run starts. Agent logs there are JSONL with message types system, assistant, user, and result; assistant carries usage, and result carries total_cost_usd. State stores the agent-log path as claudeLogPath, relative to executionPath, for example .hankweave/runs/{runId}/observe-0-claude.log.

Checkpoint storage#

.hankweave/checkpoints/ contains .hankweavecheckpoints/, the Git repository that tracks selected files in agentRoot/, and .gitconfig, the isolated configuration with user.name = Hankweave Runtime and gpgsign = false. The store is named .hankweavecheckpoints rather than .git so an execution directory is not detected as a Git submodule. Git operations point HOME and XDG_CONFIG_HOME at this checkpoint directory instead of using the operator's global configuration. See Checkpoints for store mechanics.

When inspecting from agentRoot, select the checkpoint repository and work tree explicitly:

git --git-dir=../.hankweave/checkpoints/.hankweavecheckpoints \
  --work-tree=. log --oneline

Sentinel outputs and history#

Sentinel outputs are under .hankweave/sentinels/outputs/{sentinelId}/ and use {id}-{codonId}-{timestamp}.{ext}. The extension is md for text, ndjson for structured output with structuredOutput: true, or jsonl when output.format is "jsonl". Conversational state is under .hankweave/sentinels/history/{sentinelId}-codon-{codonId}.json; it stores turn history, token counts, and trim metadata between triggers. Output-path resolution belongs to Sentinel configuration. The public WebSocketLogReader surface belongs to Client and exported types; this page does not provide a deep server import.

How rigArchive/ is organized#

archiveOnSuccess selects file-glob matches from agentRoot/ for copying to rigArchive/ when the owning codon completes; a loop-level archive runs once when its loop terminates. Its entries are file globs (file patterns), so a tree uses a pattern such as current-project/**, not a bare directory.

Where a file lands under rigArchive/ depends on whether its codon ran inside a loop:

For a loop codon, the runtime ID includes the iteration suffix (edit#0), which becomes edit-0 in the archive path. Loop IDs do not contain #. A loop-level archive runs once when the loop terminates. The source path is relative to agentRoot/; from an agentRoot command, the sibling archive begins at ../rigArchive/.

The loop fixture uses the file glob explicitly:

"archiveOnSuccess": ["current-project/**"]

Its observed first-iteration file is ../rigArchive/revise-0/edit-0/current-project/history.txt when addressed from agentRoot, matching the loop-iteration row of the table above.

Archive operations copy the selected files and then remove them from agentRoot/. Each manifest entry records sourcePath relative to agentRoot/, archivePath relative to the execution root, codonId, optional loopContext (loopId and iteration), checkpointSha, and timestamp. Rigs, Codons, and Loops link here for this path shape.

When --replay copies the directory#

Since 0.5.6, --replay copies the source execution to $TMPDIR/hankweave-replay-{Date.now()}-{random}/ before starting. The original remains available as a read-only artifact. Hankweave removes runtime.lock from the temporary copy so a live source run does not block replay startup, then removes the temporary directory when the process exits.

Use --replay with the source execution as its argument. When no hank or data paths are supplied, the CLI discovers hankPath and readOnlySourceDataPath from .hankweave/execution-meta.json, making --replay <dir> self-contained. Replay cannot be combined with --execution; supplying both flags exits with an error.

Replay starts a fresh run even when the source is complete and replays all codons from scratch. It reproduces the recorded codon LLM output from the existing JSONL logs rather than making those codon LLM calls. Replay intentionally skips rig setup and sentinels because the copied directory already contains the post-setup state; it therefore does not prove that changed rigs or external side effects work. In the pinned completed-execution capture, the listener initialized, the process exited 0 on its own, and the original state and event journal remained byte-identical. That is one capture, not a promise that every replay stays open or exits immediately, nor an absolute offline or zero-bill guarantee.

bunx hankweave@0.10.0 --replay ./my-execution

How checkpoint file watching works#

File-change detection is scan-on-demand. After a file tool call that could modify the filesystem, such as Write or Edit, the runtime scans for changes matching the configured patterns; it does not maintain a persistent filesystem watcher.

checkpointedFiles patterns accumulate across codons. After codon 1 declares *.ts and codon 2 declares *.md, later checkpoints continue to use both patterns. Before a checkpoint, the runtime re-adds the patterns from every codon through the current one into a trackedPatterns set, which is not cleared between codons.

UnifiedFileResolver combines .gitignore rules from the root and every subdirectory, rewriting subdirectory-relative rules to project-relative paths and caching the combined rules per project path. Before parsing those files, it always ignores .git/, read_only_data_source/, .hankweavecheckpoints/, -quarantine-*, and .hankweave.backup-*. Those hard-coded exclusions apply regardless of checkpointedFiles.

Lifecycle of the execution directory#

--cleanup removes execution artifacts; CLI reference owns its exact scope. The directory is not automatically cleaned up after a run, so it remains available for inspection, resume, or replay.

For a debugging snapshot, archive .hankweave/, agentRoot/, and rigArchive/ together. Those three parts reconstruct the execution state; read_only_data_source/ remains a symlink by default or is copied when --copy was used.

Two execution paths are rejected: an explicit path containing both /.hankweave-executions/ and /data, and an explicit path equal to the resolved read-only source data path. Keep the source and execution directory distinct, and choose another explicit execution path or omit --execution when one of these checks applies.
